Description

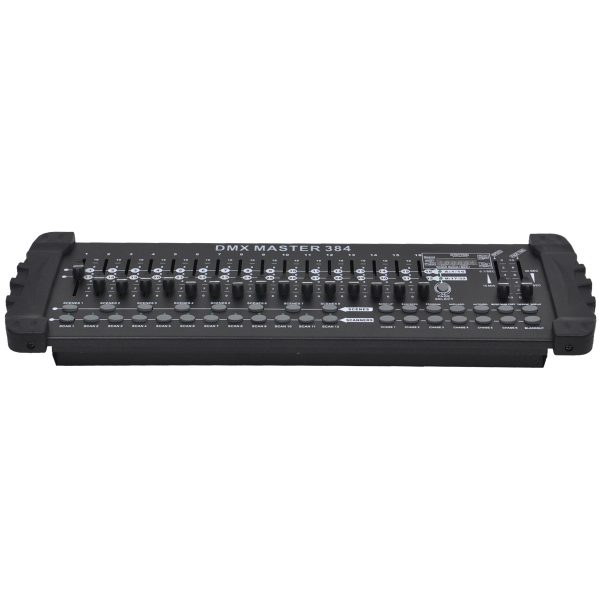

384 CH DMX 512 Controller Specifications
| AC Power | AC100V-240V,60/50Hz |
| Power Consumption | 10W |
| Control Signal | DMX512 |
| Control Channels | 384CH |
| Electric current | No more than 500mA |
| Operation mode | 16 sliders for direct control of channels |
| Packing Size | L610*W210*H140 mm |
| Net Weight | 3.2KG |
| Material | Iron body |
| Body color | Black or White |
| Protection rating | IP20 |
| Working environment | Indoor -20～40℃ |
384 CH DMX 512 Controller Packing
1*Disco384
1*Power cable
1*Dmx cable
1*LED Lamp
1User manual
384 CH DMX 512 Controller Features
* 384 DMX channels
* DMX512/1990 Standard
* Controls 12 intelligent lights of up to 32channels
* 30 Banks of 8 programmable scenes
* 6 Programmable chases of 240 scenes
* Record up to 6 chases with fade time and speeds
* 16 sliders for direct control of channels
* Built-in microphone for music mode
* Automatic mode program controlled by speed and fade time sliders
* Blackout master button
* Reversible DMX channels allows fixture to react opposite to others in a chase
* Manual override allows you to grab any fixture on the fly
* Built-in microphone for music triggering
* DMX polarity selector
* Power failure memory
* 4 bit LED display

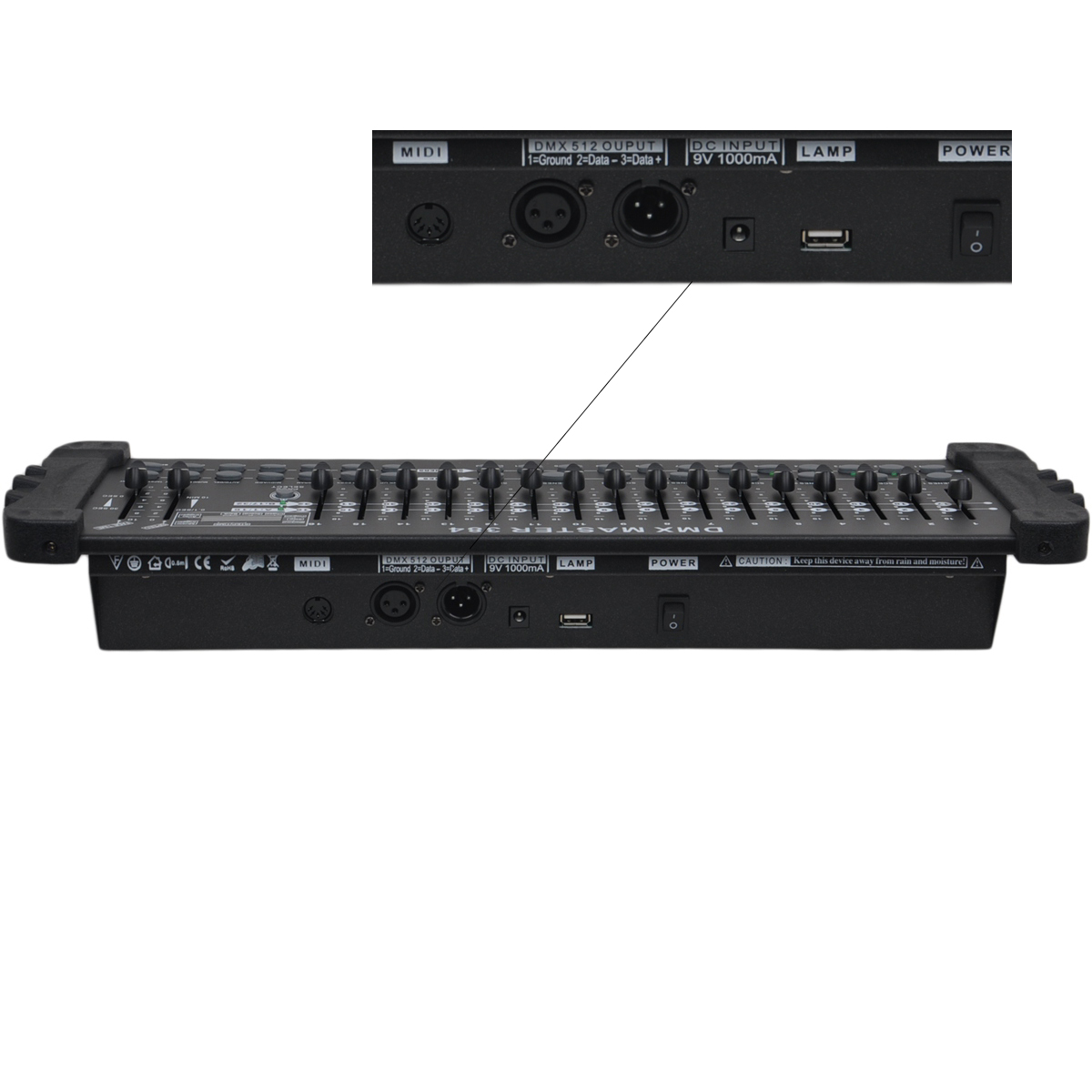

* DMX in/out: 3 pin XRL
* LED gooseneck lamp
*Power Supply:100-240Vac, 50-60Hz (DC9V-12V Input)
*Electric current:no less than 500mA
*Power Consumption: 10W
*Control Signal: DMX512
*Control Channels: 384CH
*Carton Size: L610*W210*H140mm
*N.W: 3.2Kg *G.W: 3.6Kg
